Property Overview

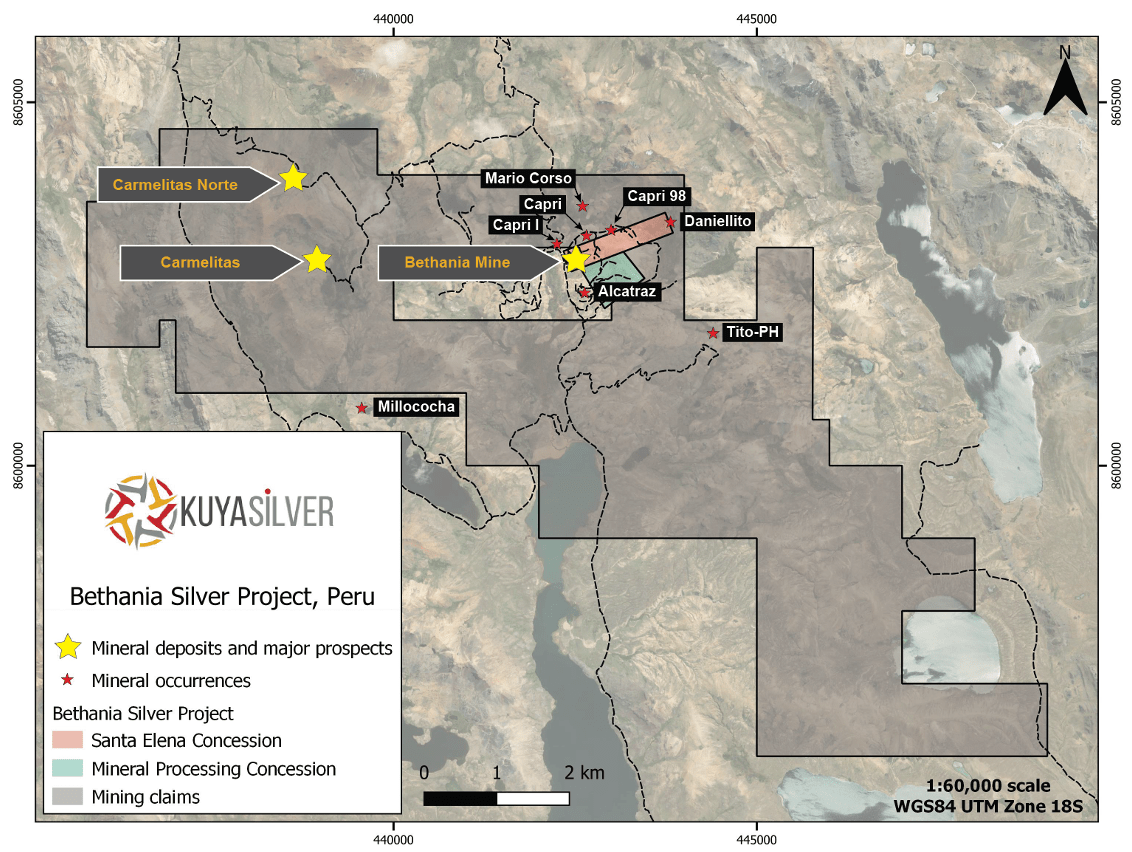

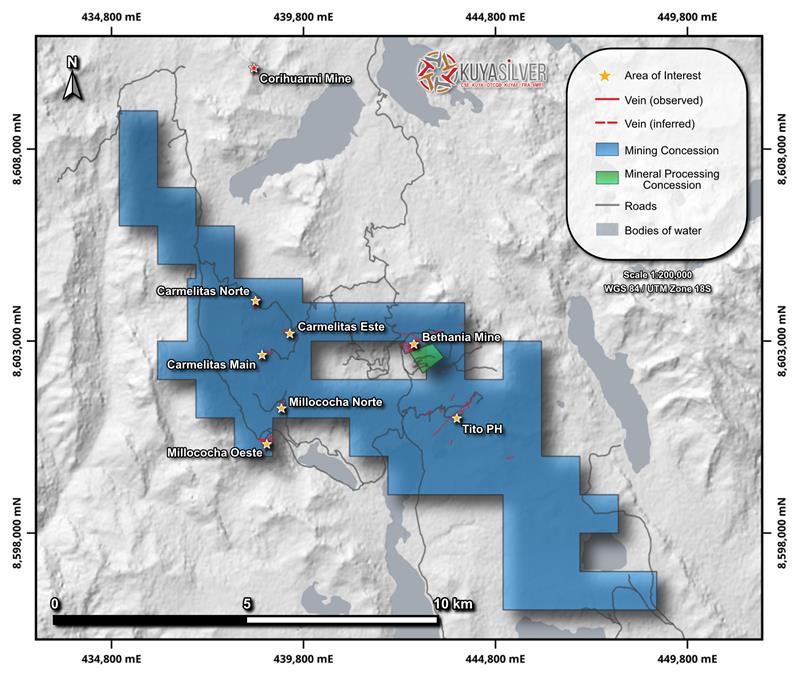

The Bethania Silver project is located in Central Peru, in the northwestern part of Huancavelica Department, approximately 316 km by road from Lima. The project encompasses four concessions totalling 1750 Ha that are accessible year-round via a 4 hour drive from the city of Huancayo. The focus of the project is the Santa Elena concession, a mining concession where the Bethania Silver Mine is located. The project was in production until 2016, toll milling its ore at various concentrate plants in the region.

Historically the mine has produced silver-lead and zinc concentrates from the run-of-mine material until being placed on care and maintenancedue to market conditions and lack of working capital.In 2017, Kuya Silver entered into an earn-in agreement with S&L Andes to earn up to an 80% interest in the Bethania Project.

The company has recently received approval from the regional government of Huancavelica for the semi-detailed environment impact study (EIA) for the Bethania processing plant project. The EIA approval covers a plant design for 350 tonne per day crushing, grinding and flotation circuits, as well as a tailings storage facility and ancillaryinfrastructure. Kuya plans to implement an expansion and construct a concentrate plant at site before restarting operations in 2021.



Geology & Mineralization

The Bethania Silver Project is located over the Cordillera Central, a region containing prolific and prospective base and precious metals belts. The area is host to numerous styles of mineralisation, including epithermal Au – Ag, porphyry Cu-Au- Mo, and replacement/skarn Zn-Cu. The Bethania Mine is located along an interpreted major north-northeast fault line within Southern Peru’s Au – Ag Epithermal Belt. The Santa Elena Concession (Bethania Mine) covers Tertiary volcanic rocks that include andesite, dacite and tuff. All of the mineralized veins discovered to date are hosted by altered andesite and/or dacite with some anomalous mineralization hosted by silicious bodies of stockwork quartz-breccia.

The focus of past on-vein exploitation has focused on east-northeast trending systems but numerous north – northwest trending veins have seen little if any exploration and testing. The total lengths of the vein system are not clear for all the veins and there is evidence that the northeast-trending veins could extend several hundred meters along strike. In addition, many of the veins continue at depth as evidenced from underground mine developments.
